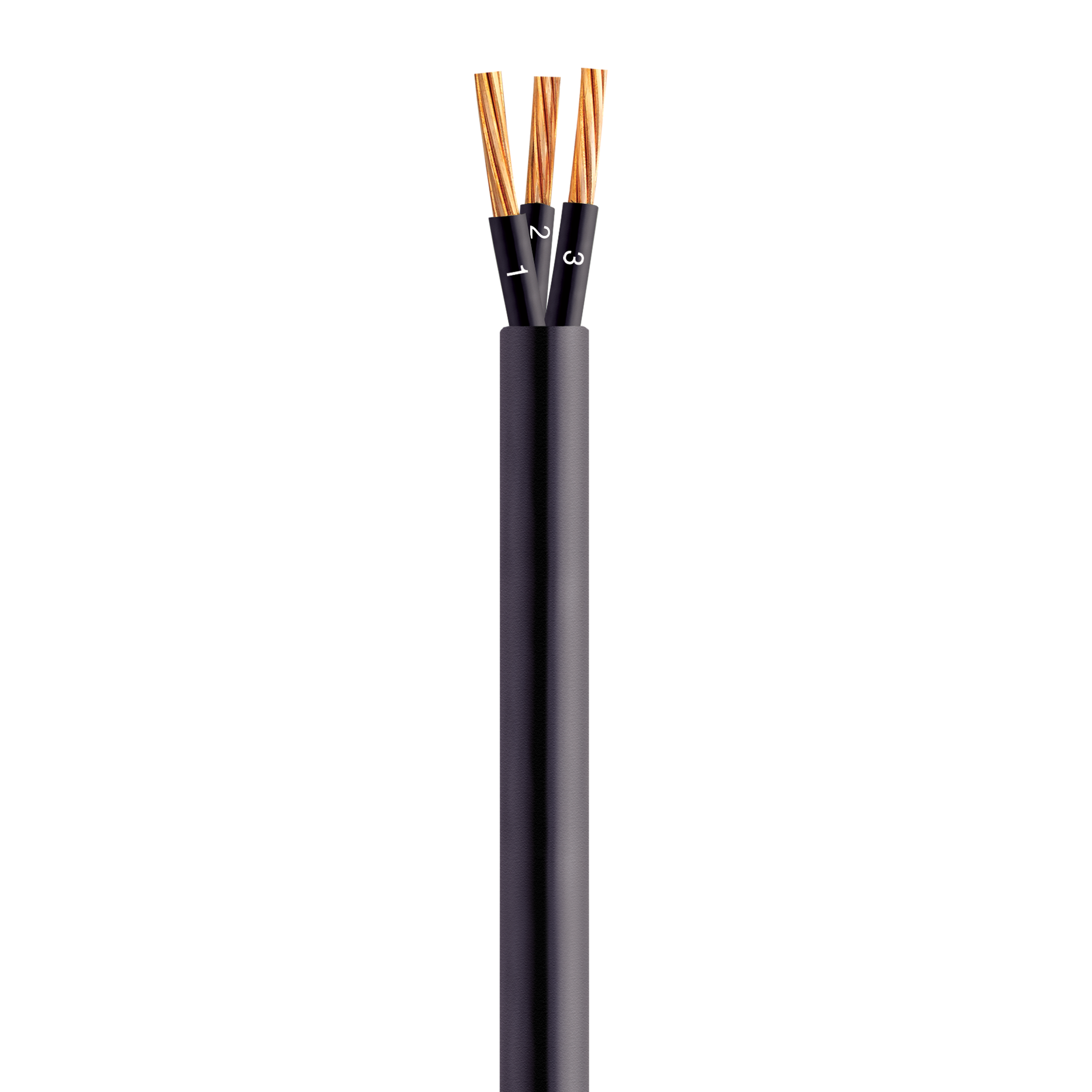

Copper, XLPE Insulated and PVC Sheathed Multiple Cable 0,6/1kV – Maxlink
Used in fixed power and lighting installations in industrial, comercial and residential buildings, in distribution and terminal circuits, and for underground low-voltage power lines. Their higher thermal class allows greater current-carrying capacity
Product Info
Insulation:
XLPE 90 °C – Thermoset compound of cross-linked polyethylene, black in color.
Sheath:
PVC ST2 – Thermoplastic polyvinyl chloride compound, flame resistant.
Identification:
Numbered or colored black cores
Maximum Operational Temperatures:
- 90° in continuous operation
- 130° in overload
- 250° in short circuit
Conductor:
Cable formed by electrolytic bare copper wires, soft temper, class 2 stranding.
Applicable Standards:
- ICEA S-95-658: Standard for Power Cables Rated 2000 Volts or Less for the Distribution of Electrical Energy
- NEMA WC-70: Standard for Power Cables Rated 2000 Volts or Less for the Distribution of Electrical Energy
- NEMA WC-7: Standard for Cross-Linked-Thermosetting-Polyethylene-Insulated Wire and Cable for the
Transmission and Distribution of Electrical Energy
- ASTM B3: Standard Specification for Hard-Drawn Copper Wire
- ASTM B8: Standard Specification for Concentric-Lay-Stranded Copper Conductors
- ASTM B230: Standard Specification for Aluminum 1350–H19 Wire for Electrical Purposes
- ASTM B231: Standard Specification for Concentric-Lay-Stranded Aluminum 1350 Conductors
- ASTM B232: Standard Specification for Concentric-Lay-Stranded Copper Conductors
