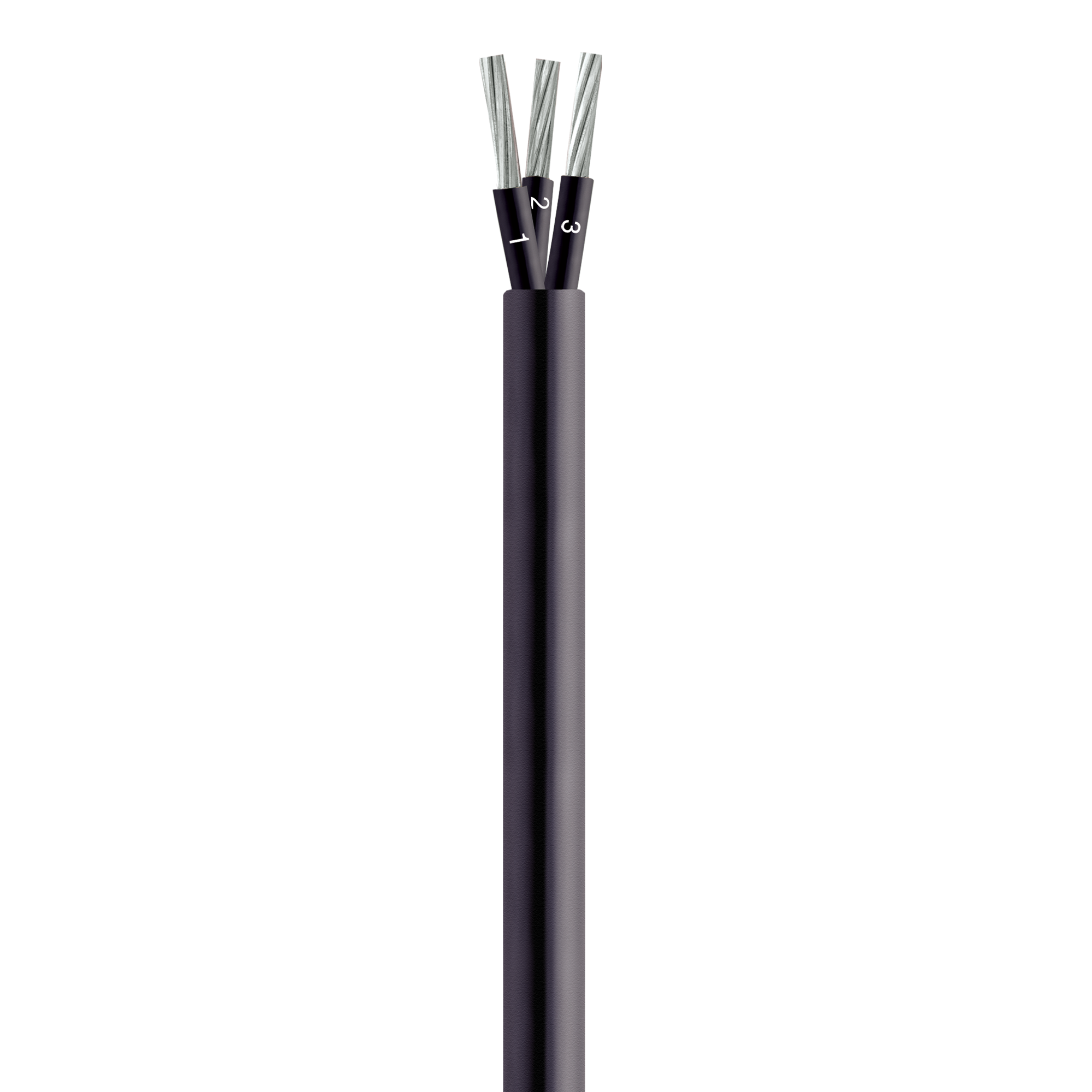

Aluminum XLPE insulated and LSZH Sheathed (Non-Halogenated) Multiple Cable 0,6/1 kV – Safetymax
SafetyMax cables are non-halogenated and have low smoke and toxic gas emission and non-fire propagation characteristics. Used in installations in places with high density of occupation of people and difficult escape conditions, such as: Cinemas, Shopping Centers, Restaurants, Supermarkets, Hospitals, Train / Subway, Educational / Sports / Fair Establishments, as well as in electronic and computer areas
Product Info
Insulation:
HEPR 90 °C thermoset polyolefin compound, non-halogenated, with low smoke emission.
Sheath:
SHF1 – Non-halogenated thermoplastic polyolefin compound, with low smoke emission, with special characteristics regarding the non-spread and self-extinguishing of fire.
Identification:
- 2 Conductors: Black, Light Blue.
- 3 Conductors: Black, Light Blue, White.
- 4 Conductors: Black, Light Blue, White, Red.
Note: other colors, on request.
Maximum Operational Temperatures:
- 90° in continuous operation
- 130° in overload
- 250° in short circuit
Conductor:
Formed by bare aluminum wires alloy 1350, temper H19, stranding class 2, round compact
Applicable Standards:
- ICEA S-95-658: Standard for Power Cables Rated 2000 Volts or Less for the Distribution of Electrical Energy
- NEMA WC-70: Standard for Power Cables Rated 2000 Volts or Less for the Distribution of Electrical Energy
- NEMA WC-7: Standard for Cross-Linked-Thermosetting-Polyethylene-Insulated Wire and Cable for the Transmission and Distribution of Electrical Energy
- IEC 60754-2: Test on Gases Evolved during Combustion of Materials from Cables – Part 2: Determination of the Amount of Halogen Acid Gas
- ASTM B3: Standard Specification for Hard-Drawn Copper Wire
- ASTM B8: Standard Specification for Concentric-Lay-Stranded Copper Conductors
- ASTM B230: Standard Specification for Aluminum 1350–H19 Wire for Electrical Purposes
- ASTM B231: Standard Specification for Concentric-Lay-Stranded Aluminum 1350 Conductors
- ASTM B232: Standard Specification for Concentric-Lay-Stranded Copper Conductors
