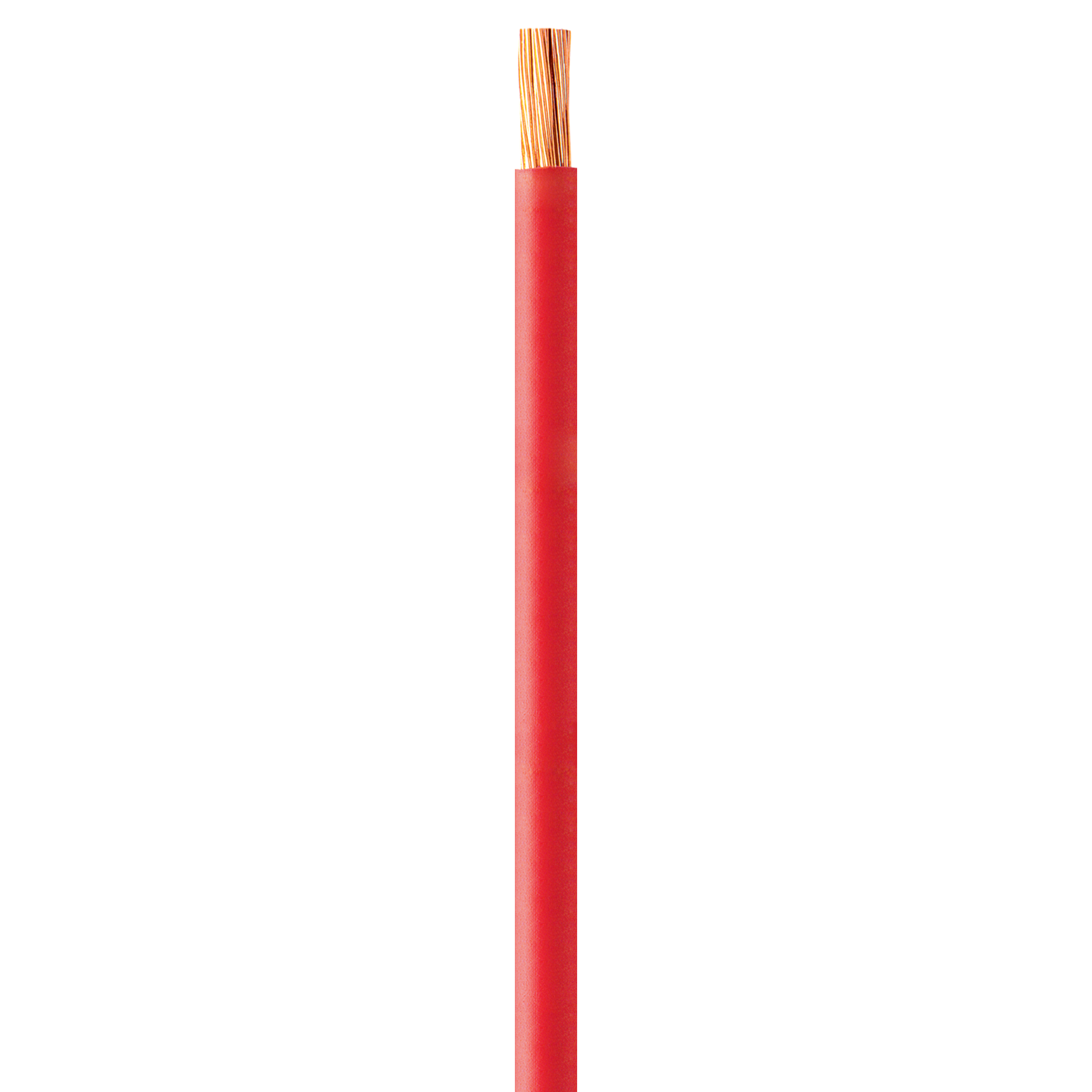

Copper, Flexible, Non-Halogenated Cable 750 V – Safetymax 750V
SafetyMax cables are non-halogenated and have low smoke and toxic gas emission and non-fire propagation characteristics. Used in installations in places with high density of occupation of people and difficult conditions of escape, such as: Cinemas, Shopping Centers, Restaurants, Supermarkets, Hospitals, Train / Subway, Educational / Sports / Fair Establishments, as well as in areas of electronics and computing
Product Info
Insulation:
LSHF-A – Thermoplastic polyolefin compound 70 °C, non-halogenated with low smoke emission, with special characteristics regarding the flame-resistance and self-extinguishing of fire.
Identification:
Black, Light Blue, White, Red, Green, Yellow.
Note: Other colors, on request.
Maximum Operational Temperatures:
- 70° in continuous operation
- 100° in overload
- 160° in short circuit
Conductor:
Made of electrolytic bare copper wires, soft temper, stranding class 4(1,50 a 6,00 mm²) and class 5 (10,00 a 300,00 mm²).
Applicable Standards:
- ICEA S-95-658: Standard for Power Cables Rated 2000 Volts or Less for the Distribution of Electrical Energy
- NEMA WC-70: Standard for Power Cables Rated 2000 Volts or Less for the Distribution of Electrical Energy
- NEMA WC-7: Standard for Cross-Linked-Thermosetting-Polyethylene-Insulated Wire and Cable for the
Transmission and Distribution of Electrical Energy
- IEC 60754-2: Test on Gases Evolved during Combustion of Materials from Cables – Part 2: Determination of the Amount of Halogen Acid Gas
- ASTM B3: Standard Specification for Hard-Drawn Copper Wire
- ASTM B8: Standard Specification for Concentric-Lay-Stranded Copper Conductors
