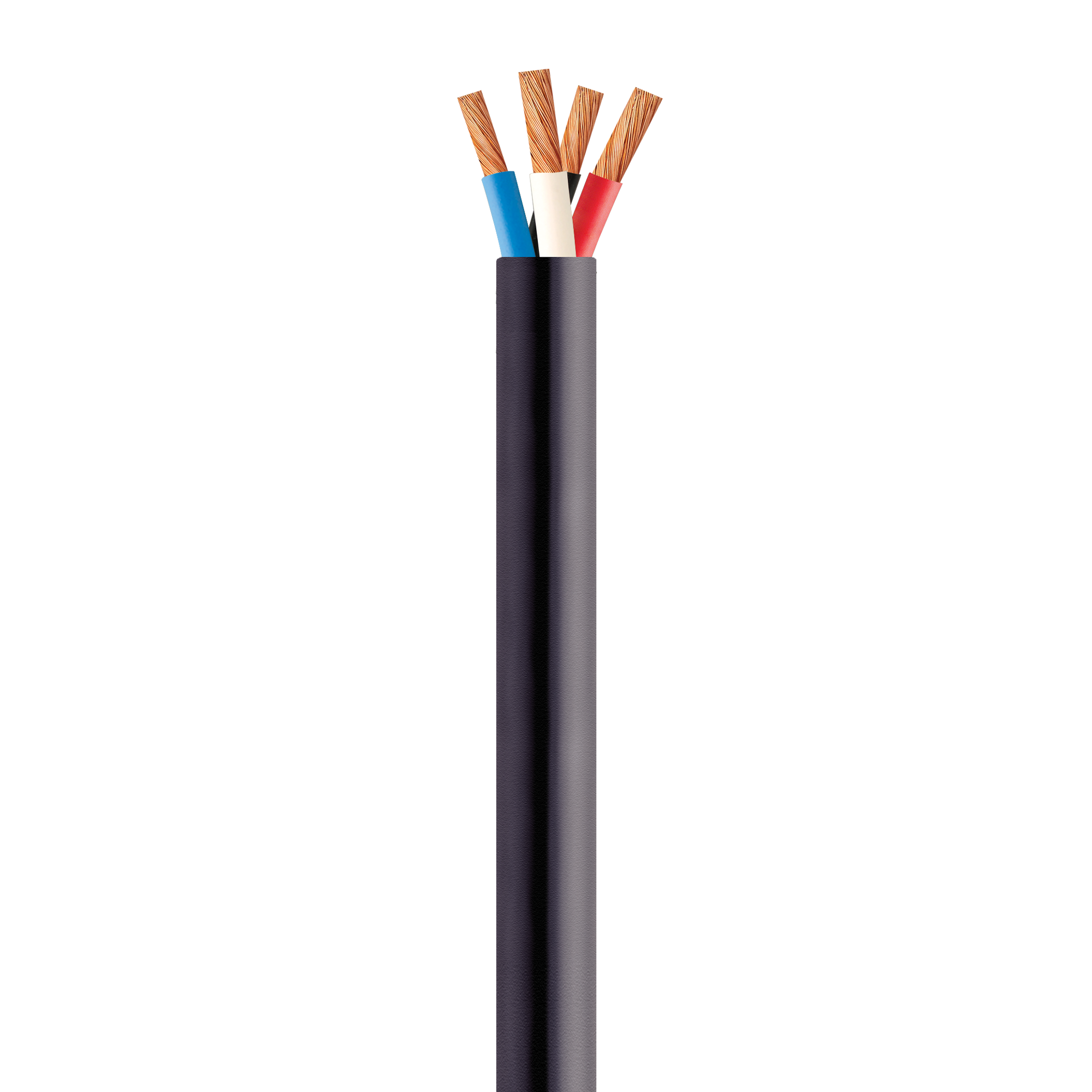

Copper, Flexible, HEPR Insulated and PVC Sheathed Multiple Cable 0,6/1 kV – Maxlink G-Flex_
Used in fixed power and light installations in industrial, commercial and residential buildings, in distribution circuits and in terminal circuits, and for underground low-voltage power lines where greater cable flexibility is required coupled with higher current-carrying capacity and longer life. Its higher thermal class (90 °C) allows for higher current carrying capacity than its PVC equivalent (70 °C).
Product Info
Insulation:
HEPR 90 °C – Ethylene propylene based thermosetting compound (high modulus).
Identification:
- 2 Conductors: Black, Light Blue.
- 3 Conductors: Black, Light Blue, White.
- 4 Conductors: Black, Light Blue, White, Red.
Note: Other colors, on request.
Maximum Operational Temperatures:
- 2 Conductors: Black, Light Blue.
- 3 Conductors: Black, Light Blue, White.
- 4 Conductors: Black, Light Blue, White, Red.
Note: Other colors, on request.
Conductor:
Made of electrolytic bare copper wires, soft temper, stranding class 4 (1.50 to 6.00 mm²) and class 5 (10.00 to 10.00 mm²).
Applicable Standards:
- ICEA S-95-658: Standard for Power Cables Rated 2000 Volts or Less for the Distribution of Electrical Energy
- NEMA WC-70: Standard for Power Cables Rated 2000 Volts or Less for the Distribution of Electrical Energy
- ASTM B3: Standard Specification for Hard-Drawn Copper Wire
- ASTM B8: Standard Specification for Concentric-Lay-Stranded Copper Conductors
- ASTM B230: Standard Specification for Aluminum 1350–H19 Wire for Electrical Purposes
- ASTM B231: Standard Specification for Concentric-Lay-Stranded Aluminum 1350 Conductors
- ASTM B232: Standard Specification for Concentric-Lay-Stranded Copper Conductors
