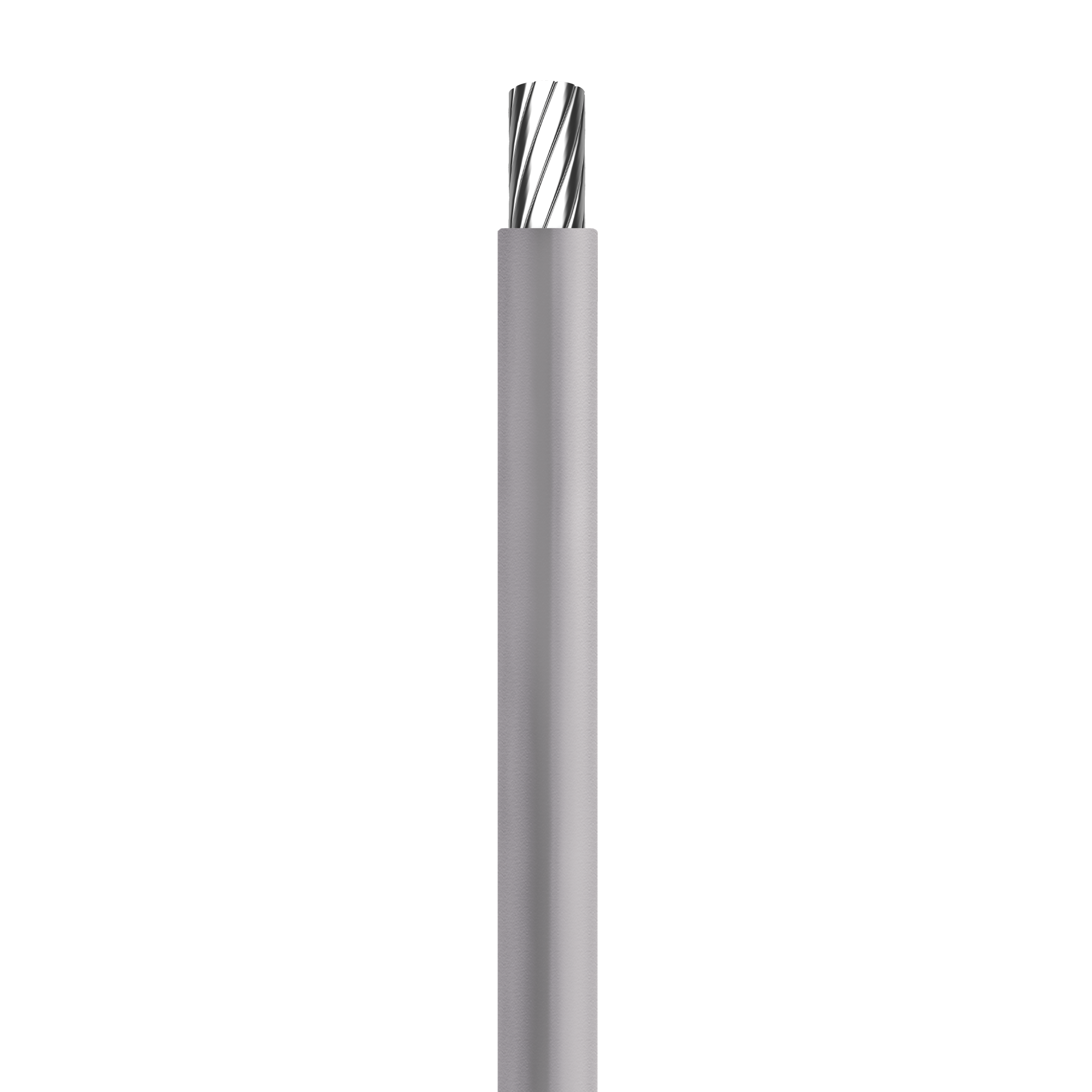

Aluminum Single Layer Covered Cable 35 kV – Maxlink SC
Used in the installation of compact 25kV networks, in areas Where space is limited and less visual pollution is required, such as: tree-lined streets or squares, offering a smaller number of tree prunings and greater protection for the conductor
Product Info
Conductor Water Blocking:
Water Blocking Tape
Conductor Shielding:
Semiconductive thermoset compound
Sheath:
In double layer being the inner layer in XLPE – Cross-linked polyethylene compound and the outer layer in HDPE – High density polyethylene compound with Anti-Tracking characteristics.
Maximum Operational Temperatures:
- 90°C in continuous operation
- 130°C in overload
- 250°C in short-circuit
Conductor
Formed by bare aluminum wires, alloy 1350, temper H19, stranding class 2, round compact
Applicable Standards:
- ICEA S-121-733: Standard for Aerial Distribution Cables, 600 Volts and Below, with Covered Conductors and Messenger Support
- ASTM B230: Standard Specification for Aluminum 1350–H19 Wire for Electrical Purposes
- ASTM B231: Standard Specification for Concentric-Lay-Stranded Aluminum 1350 Conductors
