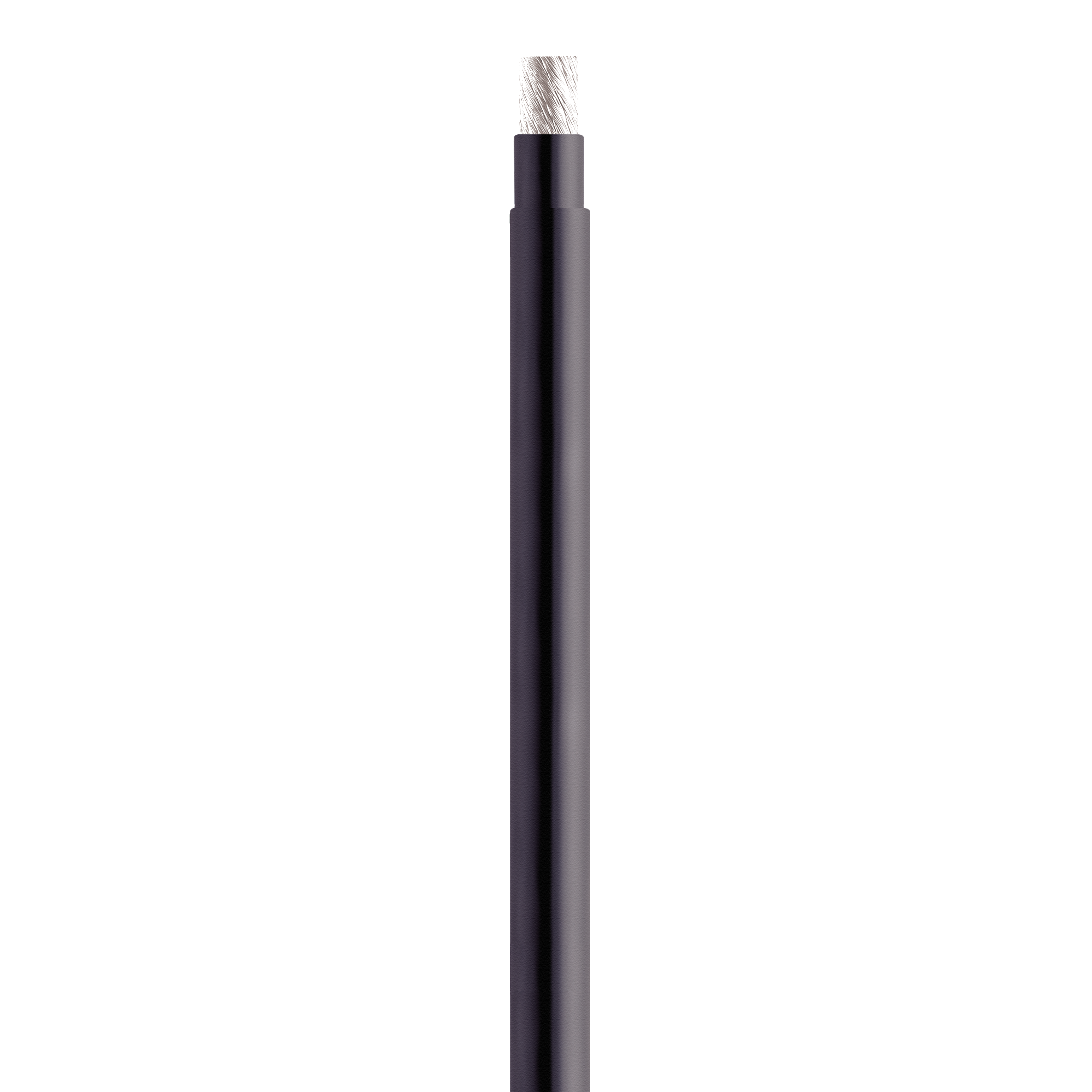

Aluminum Polyvinyl Insulated and Sheathed Single Cable 0,6/1kV – Maxvinil
Used in fixed power and light installations in industrial, commercial and residential buildings, in distribution circuits and terminal circuits, and for underground low-voltage power lines.
Product Info
Insulation:
PVC-A 70 0C – Thermoplastic compound of polyvinyl chloride, in white color, with special characteristics regarding the nonpropagation and self-extinguishing of fire
Sheath:
PVC ST1 – Thermoplastic compound of polyvinyl chloride, with special characteristics regarding the non propagation and sefextinguishing of fire.
Identification:
Black, Light Blue, Green.
Note: other colors, on request
Maximum Operational Temperatures:
- 70° in continuous operation
- 100° in overload
- 160° in short circuit
Conductor:
Cable formed by bare aluminum wires alloy 1350, temper H19, stranding class 2, round compact
Applicable Standards:
- ICEA S-61-402: Standard for Non-Metallic Sheathed Cables
- ICEA S-95-658: Standard for Power Cables Rated 2000 Volts or Less for the Distribution of Electrical Energy
- NEMA WC-70: Standard for Power Cables Rated 2000 Volts or Less for the Distribution of Electrical Energy
- ASTM B3: Standard Specification for Hard-Drawn Copper Wire
- ASTM B8: Standard Specification for Concentric-Lay-Stranded Copper Conductors
- ASTM B230: Standard Specification for Aluminum 1350–H19 Wire for Electrical Purposes
- ASTM B231: Standard Specification for Concentric-Lay-Stranded Aluminum 1350 Conductors
- ASTM B232: Standard Specification for Concentric-Lay-Stranded Copper Conductors
