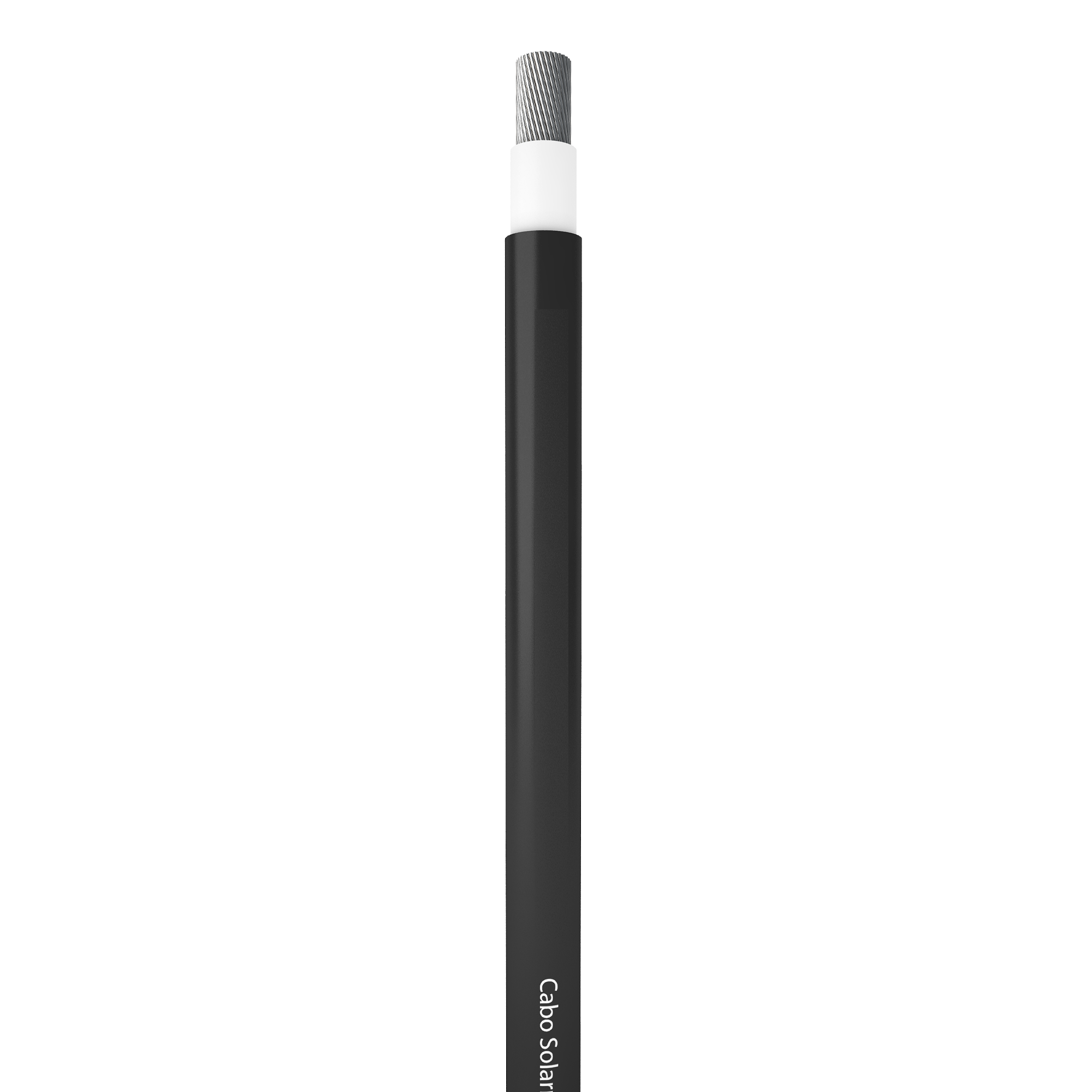

Aluminum Photovoltaic Cable 0,6/1kVCA – 1,8kVCC – Solarmax
Used in photovoltaic generation systems, connected or not to the electrical grid, in the interconnection between modules, modules-charge controllers, modules-string box, modules-inverters, string box-inverter and interconnection with batteries.
Product Info
Insulation:
LSHF – Thermoset, non-halogenated polyolefinic compound, natural color, 120 °C, with special characteristics of non-propagation, self-extinguishing fire and low smoke emission, free of heavy metals, complying with RoHS directives 2000/53 EC and 2002/95 EC, with UV protection, natural color
Sheath:
LSHF – Thermoset, non-halogenated, polyolefin compound with special characteristics of non-spreading, selfextinguishing fire and low smoke emission, heavy metal free, meeting RoHS directives 2000/53 EC and 2002/95 EC, with UV protection for all cable colors.
Identification:
Black, Red dor Green/Yellow
Voltage:
- AC: 0,6/1kV
- DC: 1,8kV
Maximum Operational Temperatures:
- 90° in continuous operation
- 120° in overload
- 250° in short circuit
Conductor:
Formed of electrolytic Copper wire, tinned, soft temper, class 5 stranding
Applicable Standards:
- UL 4703: Standard for Photovoltaic Cable
- ICEA S-95-658: Standard for Power Cables Rated 2000 Volts or Less for the Distribution of Electrical Energy
- NEMA WC-70: Standard for Power Cables Rated 2000 Volts or Less for the Distribution of Electrical Energy
- ASTM B3: Standard Specification for Hard-Drawn Copper Wire
- ASTM B8: Standard Specification for Concentric-Lay-Stranded Copper Conductors
