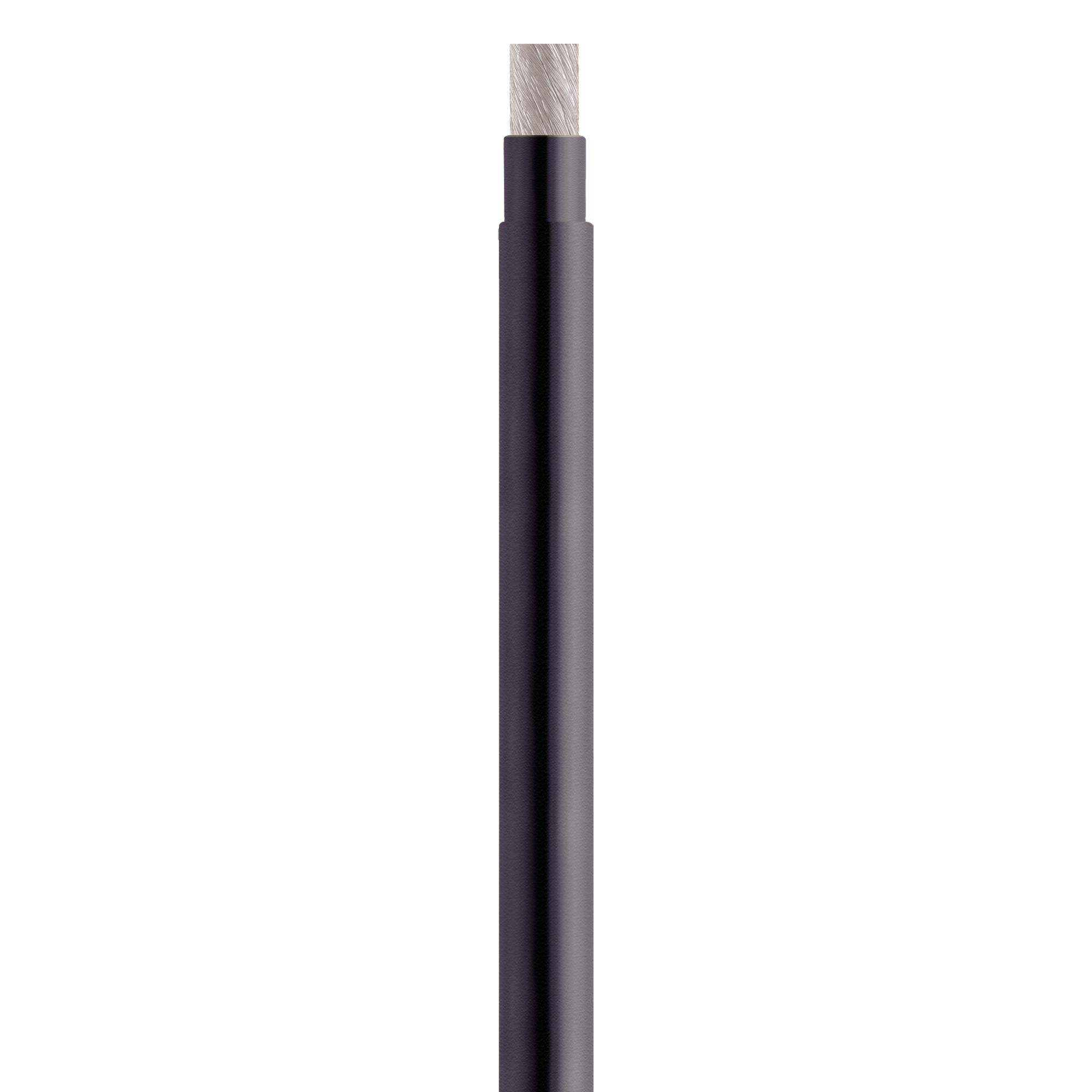

Aluminum, Flexible, HEPR Insulated and PVC Sheathed Single Cable 0,6/1 kV – Maxlink G-Flex_
Used in fixed power and light installations in industrial, commercial and residential buildings, in distribution circuits and in terminal circuits, and for underground low-voltage power lines where greater cable flexibility is required coupled with higher current-carrying capacity and longer life. Its higher thermal class (90 °C) allows for higher current carrying capacity than its PVC equivalent (70 °C).
Product Info
Insulation:
HEPR 90 °C – Thermosetting compound based on ethylene propylene (high modulus), in black colorCoveragePVC ST2 – Thermoplastic polyvinyl chloride compound, flame resistant.
Identification:
Black, Light Blue, Green.
Note: other colors, on request
Maximum Operational Temperatures:
- 90° in continuous operation
- 130° in overload
- 250° in short circuit
Conductor:
Made of electrolytic bare aluminum wires alloy 1350, temper H19
Applicable Standards:
- ICEA S-95-658: Standard for Power Cables Rated 2000 Volts or Less for the Distribution of Electrical Energy
- NEMA WC-70: Standard for Power Cables Rated 2000 Volts or Less for the Distribution of Electrical Energy
- ASTM B3: Standard Specification for Hard-Drawn Copper Wire
- ASTM B8: Standard Specification for Concentric-Lay-Stranded Copper Conductors
- ASTM B230: Standard Specification for Aluminum 1350–H19 Wire for Electrical Purposes
- ASTM B231: Standard Specification for Concentric-Lay-Stranded Aluminum 1350 Conductors
- ASTM B232: Standard Specification for Concentric-Lay-Stranded Copper Conductors
